The impact of roof light area on light levels, energy costs and CO2 emissions

  • 24 Jan 2017

Correctly specified rooflights save energy and reduce CO2 emissions, making rooflights crucial to meeting Part L of The Building Regulations covering the Conservation of Fuel & Power and the equivalent regional regulations.

According to research carried out by De Montfort University’s Institute of Energy and Sustainable Development, minimal losses in thermal insulation are greatly off set by energy savings resulting from reduced demand for electric lighting – the greater the rooflight area the greater the potential savings. Although, there is a limit before overheating may become and issue, therefore an optimum area must be identified.

Judgement is required on a project by project bases as there is never a specific solution in respect of rooflight area. NARM supplies data for different building locations for rooflights with varying degrees of light transmission and for different daily time windows.

The first consideration in establishing roofights area, is the use of the building. As a typical example, in retail and manufacturing areas, the recommended light level is 500 Lux.

The required light level will be provided by natural light for more hours if the rooflight area is larger. Therefore, establishing the appropriate rooflight area is the next point to consider. As a consequence, during these hours, no electric lighting is needed, making this a crucial factor affecting energy and emissions reductions.

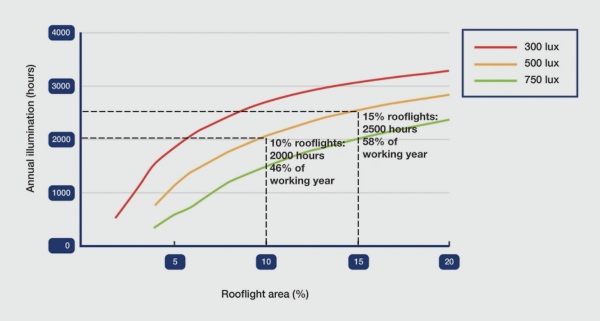

Rooflight_area_time

The graph above demonstrates the way in which rooflight areas affect illumination levels. Therefore, for a single storey building located in London, for example, between the hours of 6am and 6pm daily, with rooflights providing 50% light transmission, as the rooflight are along the bottom of the graph increases, the given illumination level time is extended.

Moreover, if a building requires 500 Lux, you can see by the yellow line that with 10% rooflights, 500 Lux would be achieved for approximately 2000 hours and 46% of the working year. However, it should be noted that the savings will only be made if the lights are switched off during periods when they are not required. Subsequently, automatic lighting controls should be specified as part of the project.

Elmhurst Energy recently researched these figures and found that savings in running costs of up to £5.92/m2/yr, and savings of CO2 emissions up to 28.7kg CO2/m2/yr can be achieved, with results from industrial and retail buildings very consistent.

Therefore, the figures demonstrate the importance of correctly specifying rooflights as they will provide outstanding long-term returns on investment with short payback periods, as well as contributing to improved sustainability credentials for the building occupier.

For further information, please contact NARM using the contact details on our website, where you will be directed to the appropriate person.

Visit NARM's website
