British Land’s flagship headquarters, York House, is benefitting from new Mitsubishi Electric heat pump technology that has fully replaced the use of gas.

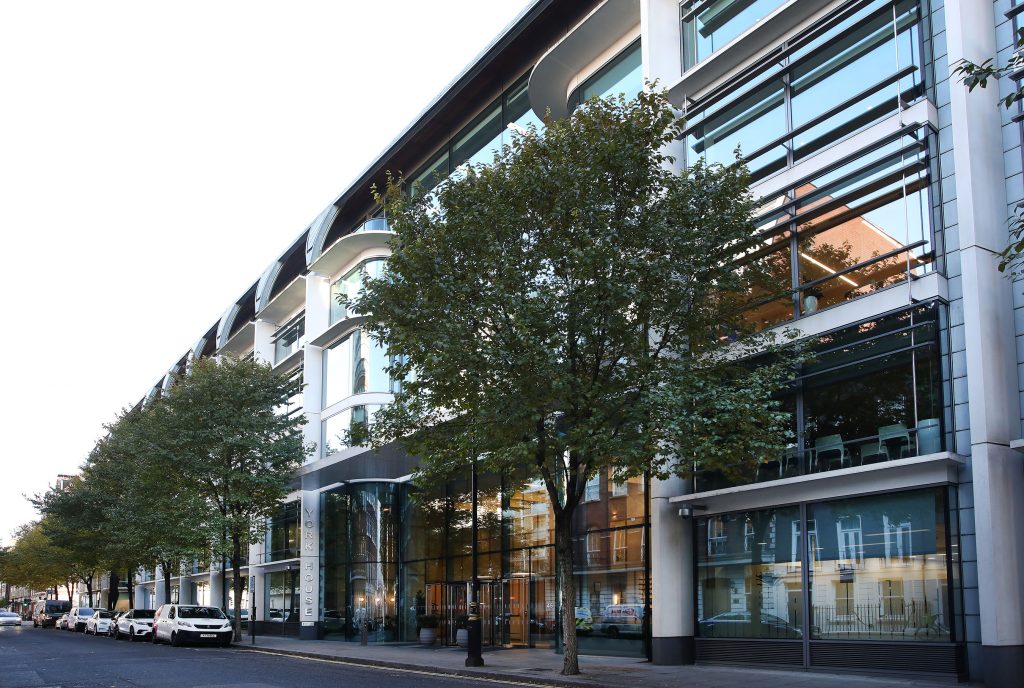

York House is a five-storey, multi-tenanted office building in Marylebone, which previously relied on gas boilers for heating and requires 24-hour cooling with extended fresh air requirements.
When looking to decarbonise the building, British Land opted for two air-source heat pump chillers and one water-to-water heat pump from Mitsubishi Electric to replace four gas boilers and an old chiller system.
This was part of a wider goal to achieve a 75% reduction in operational carbon and a 25% reduction in energy use by 2030, and the result is a building where heat pumps deliver a more than 400 kilowatt-hour reduction in energy use year-on-year.
Matt Beales, Head of Technical Project Delivery at British Land, says: “The project at York House is unique because it was the first building where we achieved a full gas removal using heat pump technology. Our previous projects have been hybrid with gas being retained, but with this one, we really wanted to lead by example as it’s our head office.”
The design of the solution was provided by 21 Engineering, and the starting point was identifying the peak load to increase efficiency.
Phil Draper, Managing Director of 21 Engineering, comments: “We came up with the principle that we could utilise a 95% peak load to minimise the equipment size and optimise the project costs.
“We looked at controlling the building on a demand-driven strategy, which means that the building isn’t allowed to get cold, and that reduces the time needed to heat it and maximises the efficiency of the heat pump technology.”
Following the project design, two other main challenges had to be addressed: the limited roof space and installing the new heating system in a fully operational building.
A structural survey of the rooftop was carried out, and the installer, Nationwide Air Conditioning, 3-D modelled the pipework and surrounding areas to ensure the units fit.
Geoff Broughey, Senior Technical Services Manager for British Land and York House, explains: “We decided to complete the works within normal office hours, so nearby apartments weren’t disturbed, which meant the office building was fully occupied. Most of the work occurred on the roof, so the building occupants weren’t aware.”

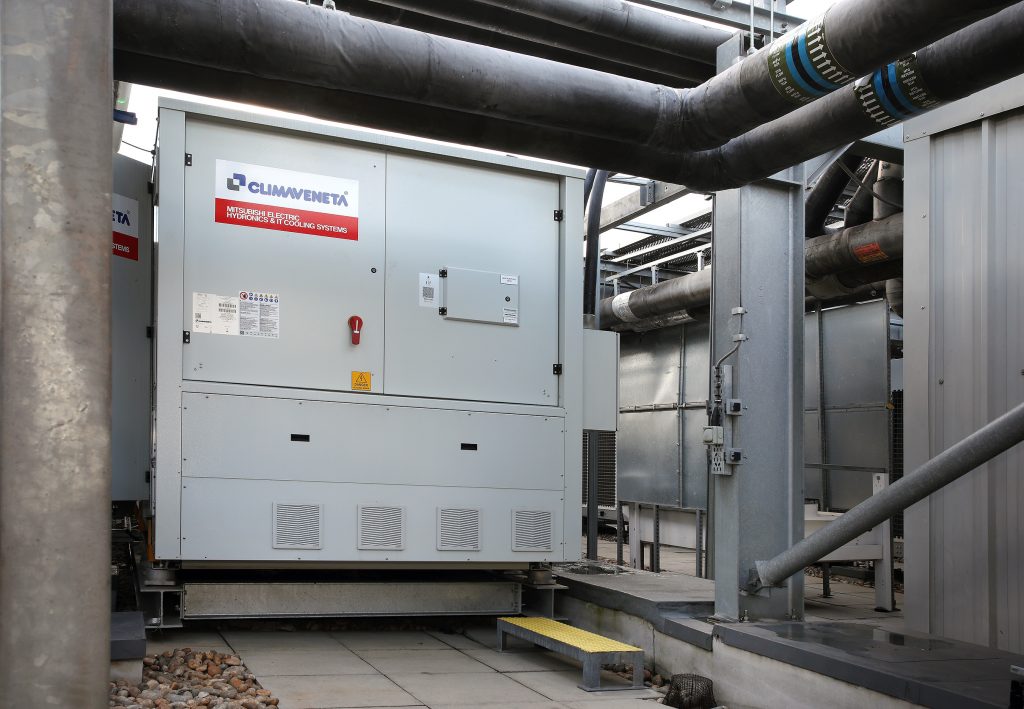

The Mitsubishi Electric heat pump chillers are also helping British Land to reuse waste heat from the process to heat the building and minimise energy consumption. The four-pipe heat pumps use R513A, a refrigerant with a lower global warming potential (GWP). Using R513A has also helped British Land get the Energy Performance Certificate (EPC) rating for the building as high as possible.
Daniel Valente, Head of Projects for Nationwide Air Conditioning, summarises the challenge: “The unique aspect of this project was that we had no hydronic separation and a much lower capacity on the water-to-water side so that we only injected the amount of heat required to give the building the load required during the winter months.
“The benefits to this were higher operational efficiencies, lower initial capital costs and a simpler installation.”
For further details on Mitsubishi Electric’s range of commercial heat pump solutions, visit https://les.
Mitsubishi Electric Living Systems,
Travellers Lane,
Hatfield,
Hertfordshire,
AL10 8XB
United Kingdom
