Green roofs or ‘living roofs’ are roofs which include the installation of planting or greenery above the waterproofing layer. They are environmentally friendly because they are effectively giving back the building’s footprint to nature.
Green roofs also have advantages in extending the service life of a waterproofing membrane system. For example, shielding it from exposure to UV radiation and freeze/thaw action in winter.
– The blanket of greenery, sedum or growing medium also acts as an insulating blanket for the internal environment. This means internal temperature variations will be less extreme, which can lead to savings in heating bills. In fact, a green roof with a thickness of 10cm has been shown to be of equal benefit to 1cm of thermal insulation.
– Benefits in acoustic sound insulation, typically at around eight Decibels can occur.
Green roofs also have an aesthetic appeal, in softening the look of rooftops and blend buildings into the natural environment.
There are two basic types of green roof: intensive and extensive.
‘Intensive Roofs’ support larger plants with deeper roots. Soil cover can be anywhere between 15cm to 60cm(+) thick. These must be maintained like gardens and may require additional watering.
‘Extensive Roofs’ are roofs with a relatively low thickness of growing medium and with vegetation typically 8-10cm high. Normal levels of rainfall are usually sufficient to support these without the need for additional watering.
Depending on whether the roof design is intensive or extensive will impact on the levels of maintenance necessary. Drought resistant plants will require little maintenance however intensive green roofs can require more maintenance, although no more than you would expect for a normal garden.
Green roof planting is just the known part, the visual that can be admired — underneath is where the technical approach is necessary. They require not only a waterproofing system but also a suitable drainage solution.
Consider a green roof as a layered process in terms of structural waterproofing.
One of the most important components of a green roof is the waterproofing/roof membrane. A Waterproofing Designer’s philosophy defines what they wish to accomplish in the design of their waterproofing system and which principles they will use to do so. Identifying a robust and suitable design philosophy is an important aspect when designing a continuous system, as this will not only directly impact in how users install the system but also in future maintenance which will directly impact on the property owner.

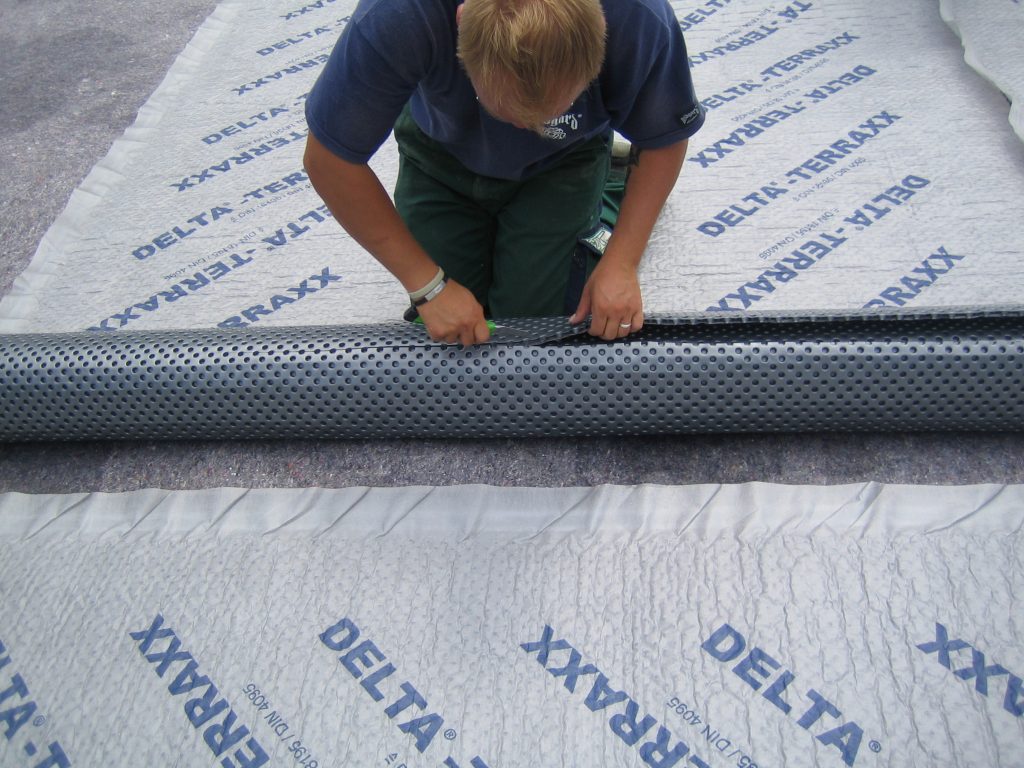

Although the green roof will retain much of the rain that falls on it, maintaining proper drainage on a green roof is still incredibly important. Use of moisture-retention fleece lined membranes such as the Delta Floraxx Top or Terraxx, ensures water remains in the soil of the green roof rather than letting it pool on the waterproofing system below.
Soil can potentially have a negative impact on the waterproofing solution, so it is vital that both the waterproofing solution and drainage layer are incorporated during the design phase.
As with any waterproofing system, maintenance and visual inspections are necessary and regular inspections should be in the schedule.
To hear more on Delta’s green roof details or further information about our range of waterproofing systems, please contact [email protected]. Or call on 01992 523 523.
